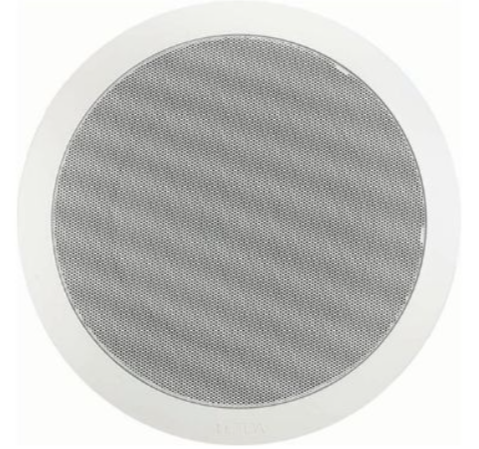

The TOA PC-668R Ceiling Mount Speaker is an exceptional audio solution for both commercial and residential applications. With a sleek, slim design, this ceiling-mounted speaker blends seamlessly into any interior decor. It features a durable polypropylene resin panel and a spring clamp mechanism for easy and secure installation. The speaker is equipped with an 8-inch double cone-type speaker component that provides clear and powerful sound. Offering a wide frequency response range of 65 Hz to 20,000 Hz, it delivers high-quality audio for a variety of environments. The TOA PC-668R comes with adjustable impedance options for both 100V and 70V line systems, making it versatile for different setups. This speaker also features a high sensitivity rating of 96 dB for optimal performance. The durable, white-painted grille and polypropylene panel ensure the speaker maintains its appearance while offering excellent sound quality. The spring clamp mechanism simplifies the installation process, making it suitable for both experienced and DIY installers. With a mounting hole of Φ250 mm, this speaker is perfect for ceiling installations in various commercial and professional spaces.
Request for Quotation
The TOA PC-668R Ceiling Mount Speaker is designed for easy integration into commercial and residential spaces, offering an efficient audio solution without compromising on aesthetics. Its integrated resin panel and speaker frame are made from high-quality polypropylene material, ensuring durability and a sleek finish that complements any interior. The speaker is designed for quick installation, featuring a spring clamp mechanism that simplifies mounting to ceilings. The slim design of the frame ensures the speaker blends seamlessly with the surrounding decor, providing high-performance sound without being intrusive.
With its impressive frequency response range of 65 Hz to 20,000 Hz, the TOA PC-668R provides crystal-clear audio suitable for a wide range of environments, including conference rooms, classrooms, or retail spaces. It is equipped with a double cone-type 8-inch speaker component, delivering superior sound quality that enhances any audio experience. The speaker's impedance can easily be adjusted through the transformer tap, offering flexibility to suit different system configurations. Its high sensitivity rating of 96 dB ensures a consistent and powerful sound output. Whether you're looking to install it in a small office or a larger commercial space, the TOA PC-668R offers reliable, high-quality sound for all your needs.
The TOA PC-668R Ceiling Mount Speaker is an excellent choice for those seeking both performance and aesthetics. Designed to offer an unobtrusive look while delivering exceptional sound, this speaker is ideal for professional audio setups. The speaker frame’s slim profile allows it to blend effortlessly into any ceiling, while the white polypropylene resin panel and surface-treated steel plate net grille ensure durability and a modern appearance. Its versatile mounting options make it suitable for various applications, including retail, hospitality, and educational environments.
With a frequency response range of 65 Hz to 20,000 Hz, the TOA PC-668R delivers clear and dynamic sound, making it a great choice for background music, public address systems, or multimedia presentations. The speaker’s adjustable impedance allows it to be fine-tuned for different voltage systems, including 100V and 70V lines. Whether you're upgrading an existing audio system or installing a new one, the TOA PC-668R’s spring clamp mechanism ensures quick and secure mounting. Its lightweight design, combined with its easy installation process, makes this ceiling speaker both practical and efficient for a wide range of uses.
15 W (100 V, 70 V line)
100 V line: 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W) 70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W)
96 dB (Pink Noise 500 Hz - 5,000 Hz / 1W, 1m)
65 Hz - 20,000 Hz (at 20 dB below peak SPL)
20 cm (8") double cone-type
Mounting hole: Φ250±5 mm (Φ9.84"±0.2") Ceiling thickness: 5 - 25 mm (0.20" - 1.98")
Spring clamp
Panel: Polypropylene resin, traffic white (RAL 9016 equivalent) Grille: Surface-treated steel plate net, traffic white (RAL 9016 equivalent), paint
Φ280 × 90 (D) mm (11.02" × 3.54")
0.96 kg (2.12 lb)
The TOA PC-668R Ceiling Mount Speaker’s spring clamp mechanism offers an easy and secure installation process. This user-friendly feature simplifies the mounting process, saving time and effort during installation. The spring clamp securely holds the speaker in place, ensuring that it stays firmly attached to the ceiling. This is particularly beneficial for quick installations in commercial settings, where time is often of the essence. The spring clamp system also ensures that the speaker remains securely mounted over time, even in high-traffic environments. The ease of installation and reliability make this speaker a popular choice for both professional installers and DIY users.
The TOA PC-668R Ceiling Mount Speaker offers versatile impedance options, making it compatible with both 100V and 70V line systems. This flexibility allows users to adjust the speaker’s impedance to suit their specific audio setup and power requirements. The impedance can be easily adjusted by changing the tap of the transformer, allowing for quick configuration without the need for specialized tools or equipment. This feature is particularly useful in large-scale installations where multiple speakers are connected to a single audio system. Whether used in a small office or a large commercial venue, the ability to adjust the impedance ensures optimal sound performance and energy efficiency.
