The TOA PC-658R Ceiling Speaker is designed for high-quality sound reproduction in ceiling installations, offering a 6" cone-type speaker with a broad frequency response range of 65 Hz to 18 kHz. Featuring an integrated resin panel and speaker frame, it also includes a metal attachment for secure and stable mounting. The spring clamp mechanism simplifies the installation process, allowing for easy ceiling mounting. The speaker's impedance can be adjusted via the tap position of its transformer, offering flexibility for different systems. The PC-658R delivers rated input of 6 W (100 V line) and 3 W (70 V line), ensuring compatibility with a variety of audio systems. Its sensitivity of 90 dB and frequency response of 65 Hz to 18 kHz ensures clear and detailed sound. The polypropylene resin baffle and surface-treated steel plate grille ensure durability while maintaining an aesthetically pleasing design. With a weight of just 500 g, this speaker is lightweight yet robust. The mounting hole is designed for a precise fit, and the product comes with a paper pattern to assist in installation. Ideal for commercial and residential environments, the TOA PC-658R Ceiling Speaker guarantees optimal performance and ease of use.
Request for Quotation
The TOA PC-658R Ceiling Speaker is engineered for both professional and residential audio installations where quality sound and easy setup are a priority. This ceiling speaker is equipped with a durable, resin-integrated panel and metal frame, ensuring robust construction and long-lasting performance. The speaker's easy-to-install spring clamp mechanism allows for quick and hassle-free mounting in various ceiling types, making it ideal for contractors and DIY installers alike. The PC-658R is suitable for use in a wide range of environments, such as conference rooms, retail stores, and home audio systems. Its versatility in impedance adjustment makes it a great choice for custom audio setups, allowing you to optimize sound quality based on your system's needs.
With a speaker component of a 16 cm (6") cone-type driver, the TOA PC-658R Ceiling Speaker delivers clear and balanced sound, covering a frequency range from 65 Hz to 18 kHz. Its rated input ensures compatibility with both 100 V and 70 V line systems, with selectable impedance options that can be adjusted to suit your installation. The speaker's high sensitivity of 90 dB means that it can provide excellent sound performance even in larger spaces. The white polypropylene resin baffle and painted surface-treated steel plate grille allow the speaker to blend seamlessly into any modern ceiling, offering both functionality and aesthetic appeal. Weighing only 500 g, it is lightweight yet strong enough to stand the test of time in demanding environments.
6 W (100 V line), 3 W (70 V line)
100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W) 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
90 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
65 Hz - 18 kHz (peak -20 dB)
16 cm (6") cone-type
Mounting hole: φ170±5 mm (φ6.69"±0.2") Ceiling thickness: 5 - 25 mm (0.2" - 0.98")
Spring clamp
Baffle: Polypropylene resin, white (RAL 9016 equivalent) Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint
φ192 × 73 (D) mm (φ7.56" × 2.87")
500 g (1.1 lb)

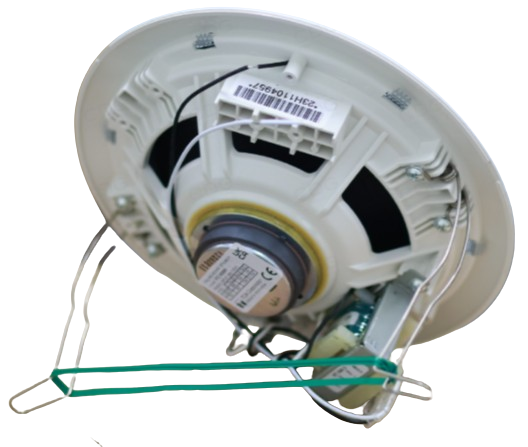

The TOA PC-658R Ceiling Speaker is equipped with a spring clamp mechanism, making installation quick and simple. This user-friendly feature allows for secure mounting of the speaker to the ceiling without the need for complex tools or additional hardware. The spring clamp system ensures a firm and stable fit, making it ideal for both commercial and residential spaces. It reduces installation time and provides a seamless experience, even for users with minimal technical expertise. Whether you're installing in a home or business setting, this feature ensures a secure and reliable mount.

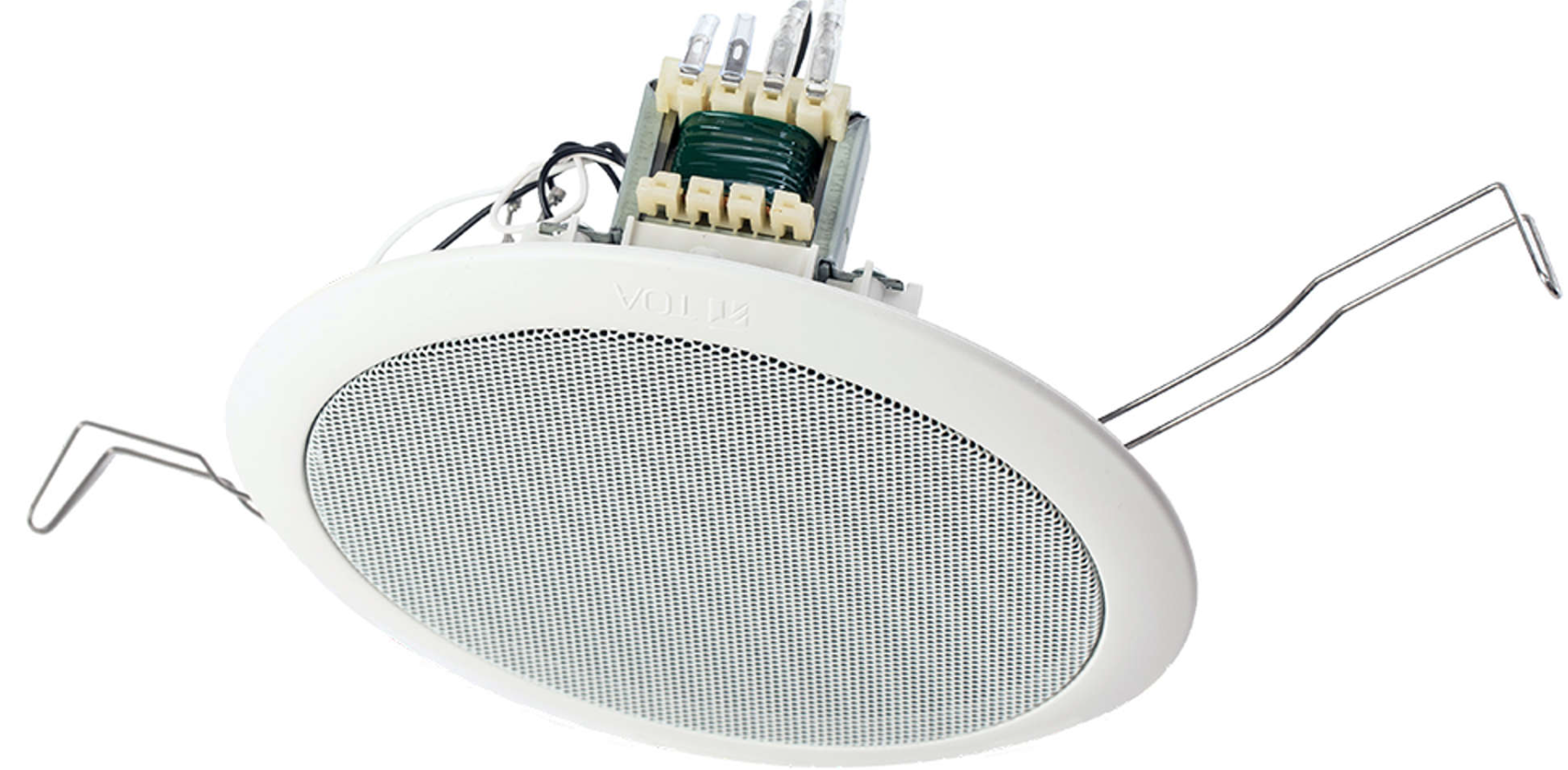

The PC-658R offers flexible impedance settings, allowing users to change the tap position of the built-in transformer for customized audio setups. This feature ensures that the speaker is compatible with both 100 V and 70 V line systems, offering versatility for a variety of audio configurations. Whether you're working with low or high-power systems, the adjustable impedance ensures optimal performance and sound quality in any environment. This adaptability makes it a perfect choice for businesses, contractors, and home users who need to tailor their audio system to specific requirements.
