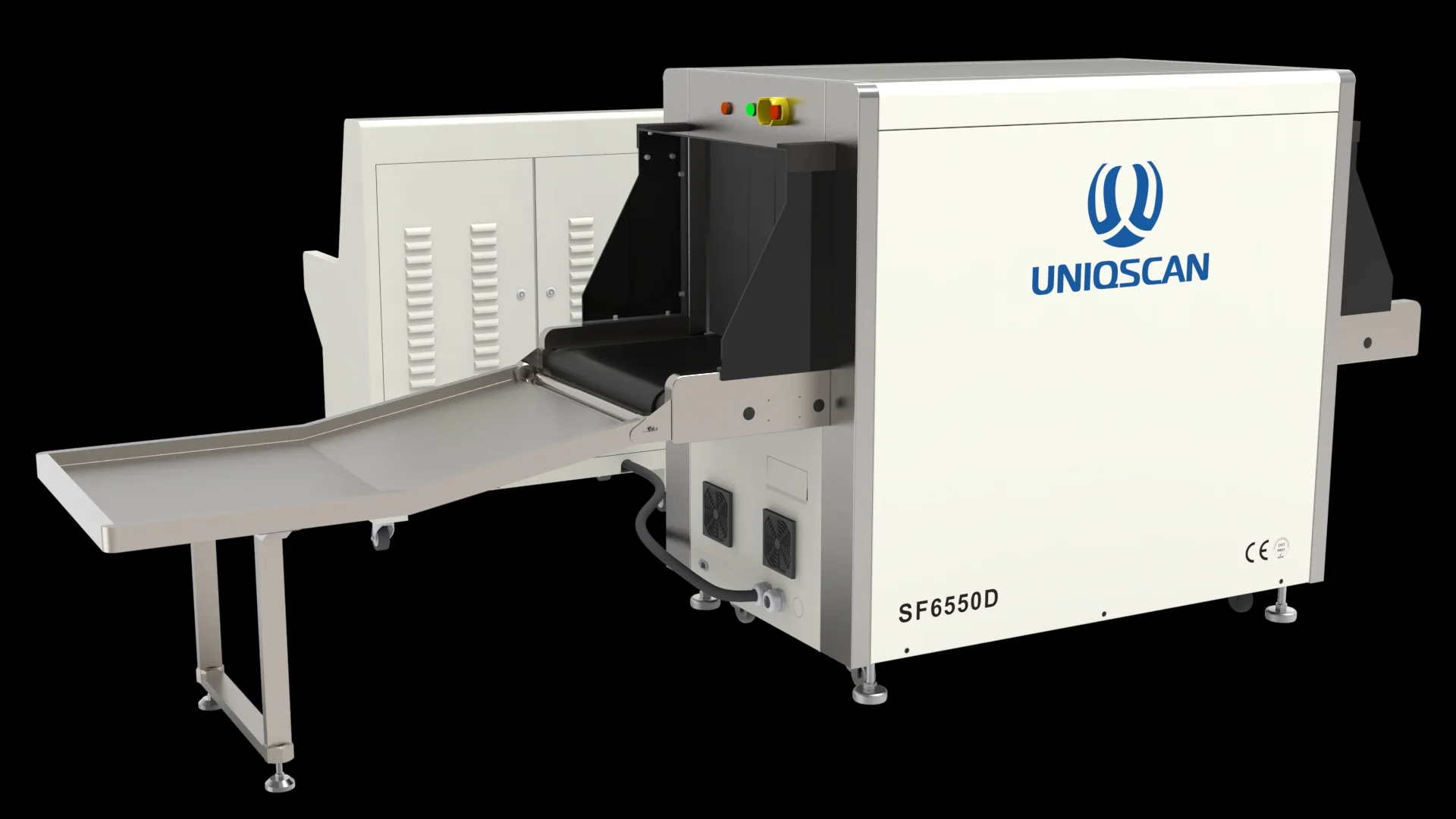

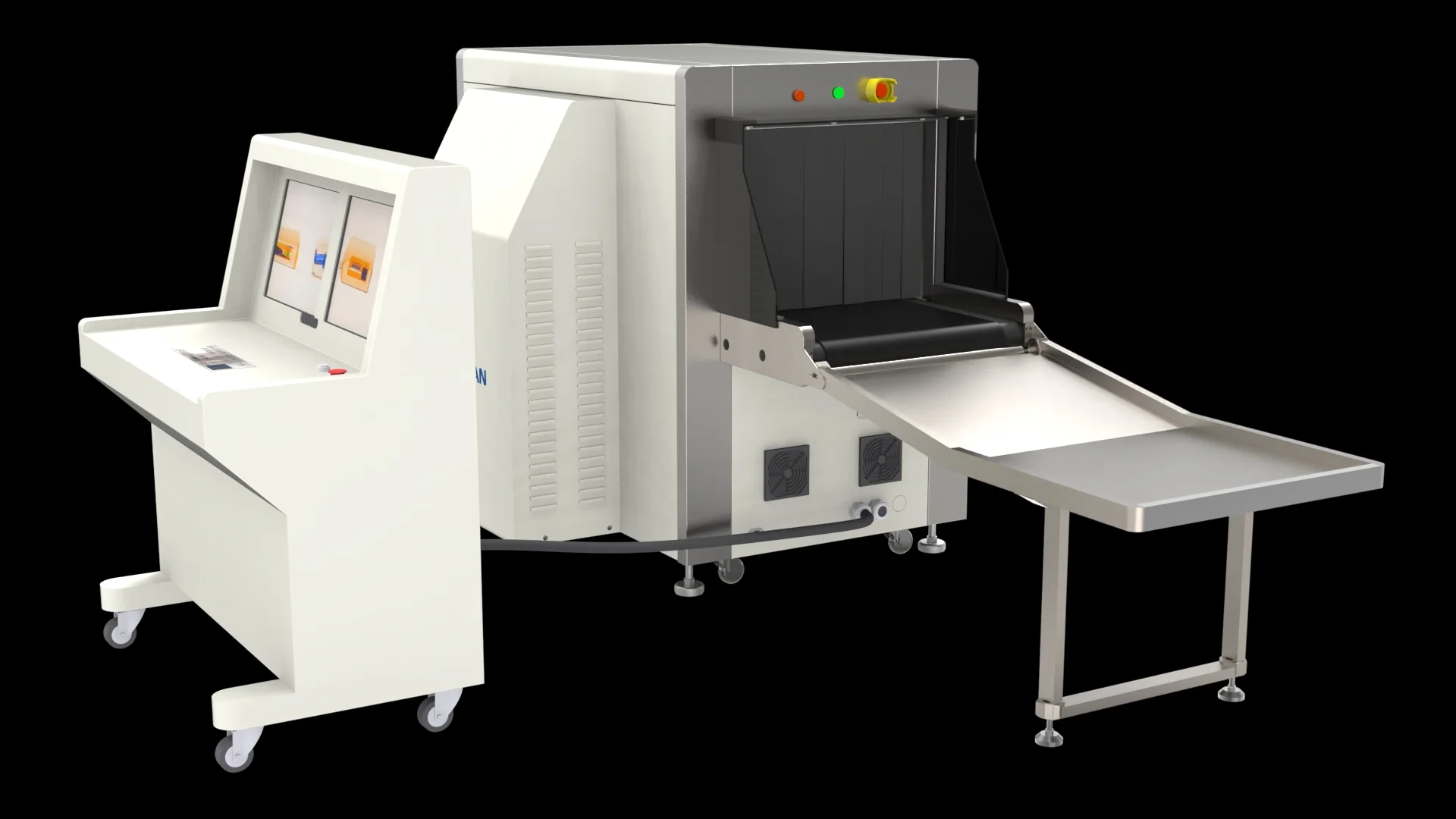

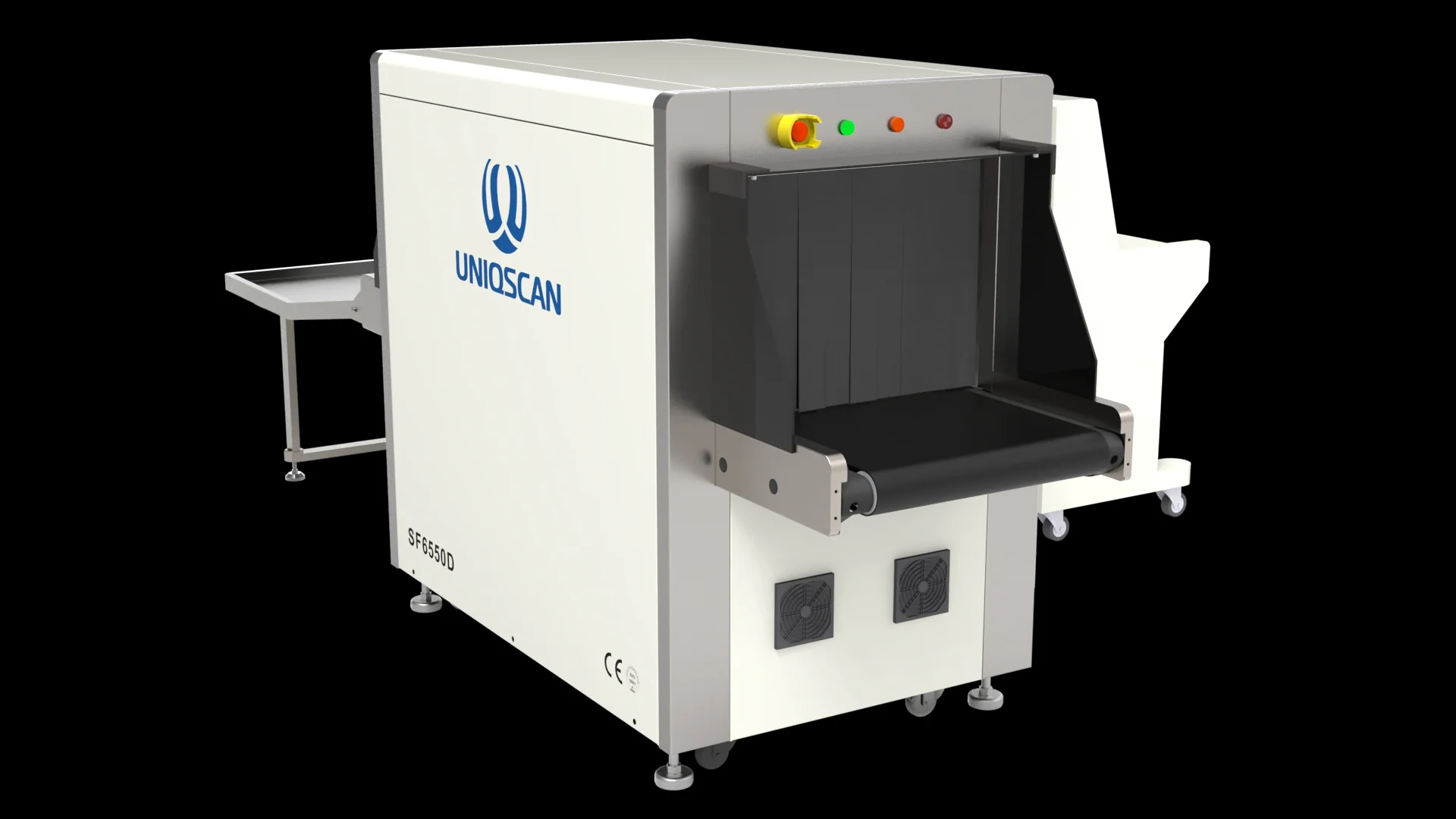

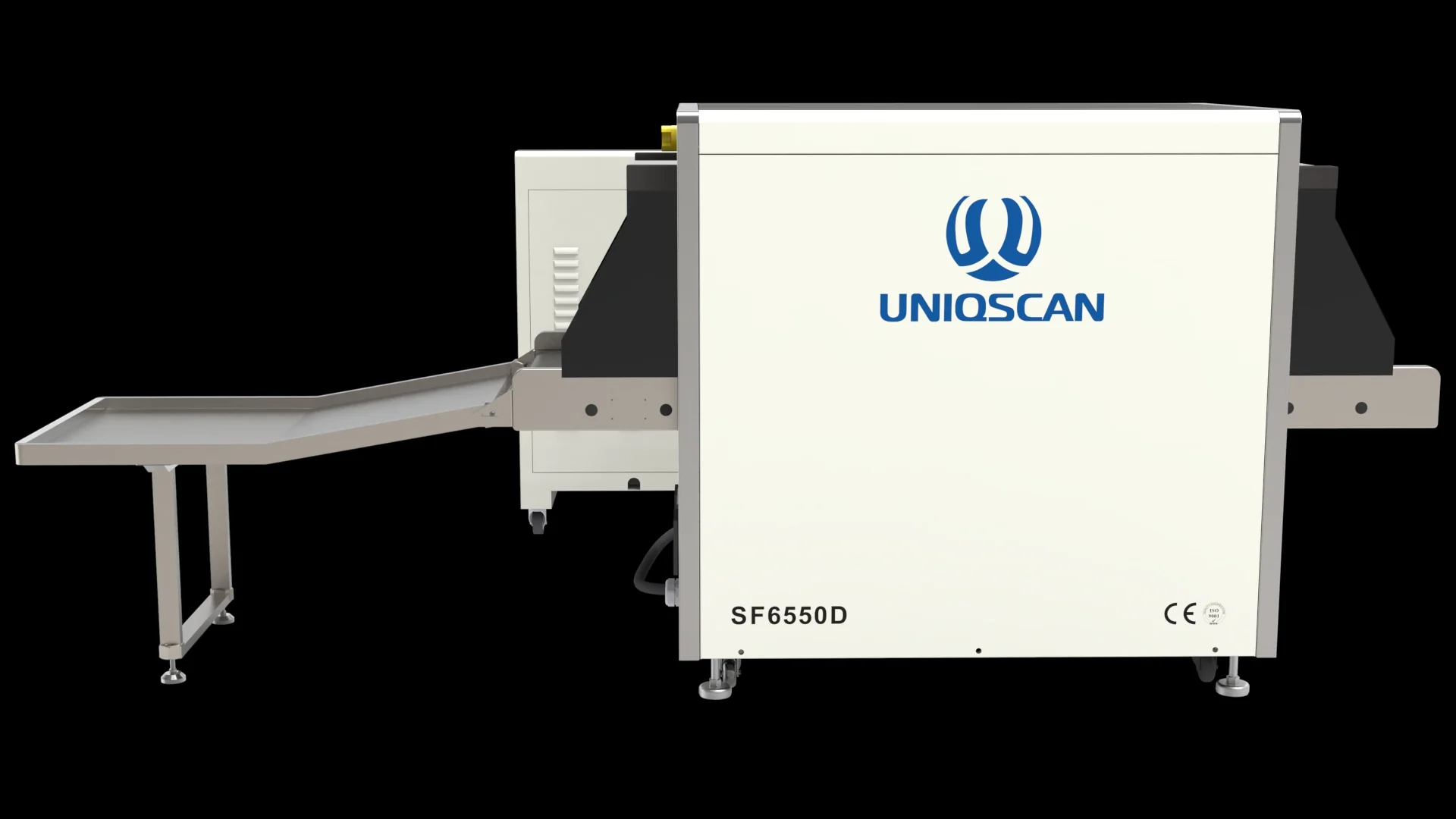

The X-ray Baggage Scanner SF6550D is a top-tier security screening solution designed for high-security environments, including airports, government buildings, and transportation hubs. Featuring advanced dual-energy X-ray imaging technology, the SF6550D delivers exceptional image clarity and high penetration power, allowing security personnel to detect concealed threats, contraband, and other prohibited items within baggage and packages with ease. Its large tunnel size accommodates a wide range of baggage, from carry-on luggage to bulky items, ensuring thorough inspection. The SF6550D is equipped with user-friendly software that includes automatic threat detection, enhancing both efficiency and accuracy while reducing inspection times. With its robust construction and cutting-edge features, the SF6550D X-ray Baggage Scanner offers a reliable, scalable security solution that improves operational effectiveness and ensures the safety of high-traffic, public areas.

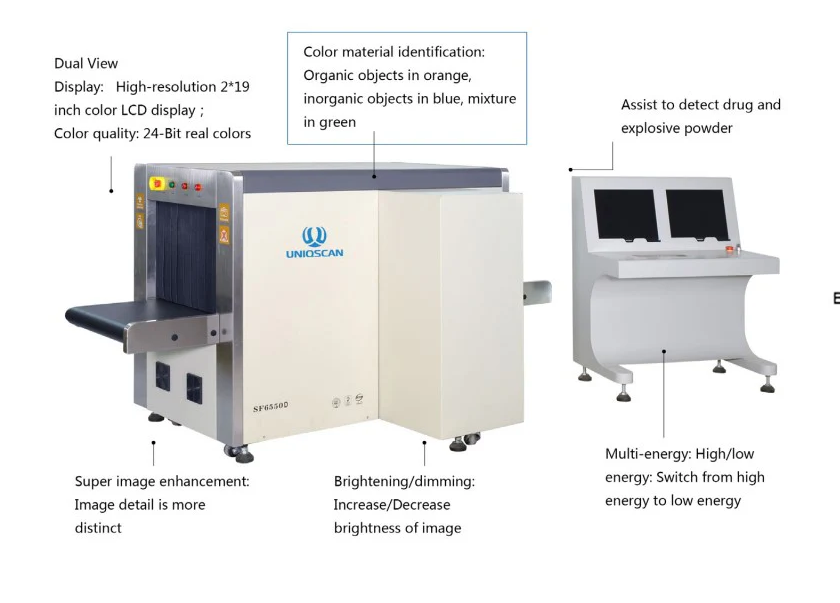

Request for QuotationThe X-ray Baggage Scanner SF6550D by Uniqscan is a next-generation security screening solution designed to provide high-level protection in busy environments like airports, customs, and other high-security areas. With a spacious 65x50 cm tunnel, the SF6550D accommodates a wide variety of baggage sizes, delivering thorough and efficient scanning without compromising speed. The advanced dual-energy X-ray technology of the SF6550D offers superior image clarity and material differentiation, enabling security personnel to quickly and accurately identify potential threats, such as explosives, weapons, and contraband. The system’s user-friendly interface and intuitive controls streamline operations, making it ideal for high-traffic checkpoints where efficiency and reliability are paramount.
niqscan SF6550D X-ray Baggage Scanner combines cutting-edge technology with rugged durability. Its advanced imaging system differentiates between materials of varying densities, allowing for precise identification and a higher level of threat detection. The scanner operates with minimal radiation emissions, ensuring compliance with safety regulations and protecting both operators and passengers. Whether deployed at airports, government facilities, or large-scale events, the SF6550D provides a comprehensive, fast, and secure solution for baggage inspection, making it a trusted choice for ensuring public safety and operational efficiency.
650 (W) × 500 (H) mm
0.22m/s
200kg
< 1.2μGy
<0.1μGy/h
40AWG
36mm
For ISO 1600
Upward and Sideward
0.7~1.2MA ( adjustable
140-160KV
80 °
sealed oil bath with forced air
Capable of connecting to LAN, and support multi-terminal check for baggage at same time
Ray is transmitted under automatic control, avoiding the error; One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
Capable of expediently observing the magnifying area Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
220V AC (±10%) 50+3Hz
1.0KW (Max)
<58dB
1.0mm Horizontal and Vertical
0°C -45°C/20%-95% (Non-condensing)
-20°C ~ 60°C/20% ~ 95% (Non condensing)

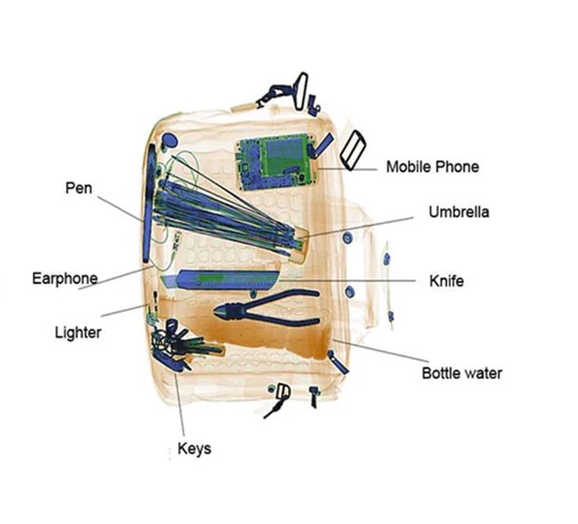

The SF6550D X-ray Baggage Scanner from Uniqscan is engineered to provide superior security screening for baggage and parcels, offering an enhanced detection system for identifying concealed threats and prohibited items. Featuring a spacious 6550mm tunnel and high-definition imaging, the SF6550D delivers crystal-clear X-ray images that allow operators to easily spot weapons, explosives, narcotics, and other contraband. Its advanced dual-energy imaging technology enables superior material differentiation, ensuring a higher level of threat detection and minimizing false alarms. This makes the SF6550D an ideal choice for high-security environments such as airports, customs checkpoints, and government buildings.
SF5030C PRO by Uniqscan meets stringent international security standards while maintaining a focus on operator safety. Its low radiation emission complies with all safety regulations, ensuring that both operators and passengers are protected. The scanner’s advanced features, such as automatic image enhancement and material differentiation, make it an invaluable tool for modern security systems. Whether used in airports, customs, or other high-traffic areas, the X-ray Baggage Scanner SF5030C PRO delivers top-tier performance, providing comprehensive baggage screening to safeguard against potential threats and enhance public safety.
